Air Brake Chamber Diaphragms | High-Performance Fabric-Reinforced Pneumatic Membranes

Ensure fail-safe commercial transport braking with Diatax's heavy-duty, fabric-reinforced air brake chamber diaphragms. Engineered for heavy commercial vehicles, trucks, lorries, trailers, and buses, our truck brake chamber diaphragms deliver maximum burst resistance and consistent pneumatic pressure regulation.

As a leading air brake diaphragm manufacturer, we cross-reference directly with OEM specifications from WABCO, Bendix, Volvo, Mercedes, Scania, MAN, and more, ensuring a perfect drop-in replacement for any global HGV fleet.

Engineering Precision

The Diatax Advantage: Why Choose Our Air Brake Diaphragms?

The structural integrity of a commercial vehicle brake diaphragm is non-negotiable when it comes to road safety. Here is why global distributors and OEMs trust Diatax:

Proprietary Fabric-to-Rubber Bonding:

We utilize a proprietary bonding technology that creates an inseparable, permanent adhesion between the high-strength fabric reinforcement and the rubber matrix. This eliminates delamination and provides unmatched high-tear resistance under violent pneumatic flexing.

2-Million Cycle In-House Testing:

While standard aftermarket parts are rated for just thousands of flex cycles, Diatax utilizes a state-of-the-art in-house testing facility. Our diaphragms are rigorously flex-tested to endure more than 2 million cycles in the brake chamber without failure.

Extreme Cold-Weather Resistance:

Commercial fleets operating in arctic and freezing environments demand materials that do not become brittle. We utilize specialized elastomeric compounding engineered to maintain dynamic elasticity and flex fatigue resistance down to severe sub-zero temperatures (tested to -40°C and below), preventing cold-cracking, stiffening, and delayed brake actuation during winter operations.

European & Global Standard Compliance:

Engineered to align strictly with ECE R13 (the European standard for commercial vehicle braking systems) performance benchmarking and SAE J2318 air brake actuator test standards, ensuring global export readiness and uncompromising safety.

OEM-Equivalent Quality:

Physical properties, wall thickness, and functional performance exactly matching global tier-1 OEM manufacturing standards.

Material Formulations

Custom Material Engineering for Fleet Environments

We manufacture precision-molded diaphragms in premium elastomers to match exact operating environments:

NR (Natural Rubber): Standard high-grade formulation for excellent flex-fatigue and low-temperature flexibility.
NBR (Nitrile Rubber): Engineered for environments requiring enhanced resistance to oils and atmospheric degradation.

Sizes & Cross References

Standard OEM Sizes & Spring Brake Compatibility

Diatax manufactures direct replacement diaphragms for both standard service brake chambers and double-diaphragm spring brake actuators (parking brakes). Our tooling covers the complete range of standard industry sizes:

Type 9 & Type 12: For light commercial and specialized applications.
Type 16 & Type 20: Common service brake dimensions for medium-duty transport.
Type 24, Type 30, & Type 36: The most widely used heavy-duty truck, lorry, and trailer diaphragms globally (including T30/30 and T24/30 spring brake tandem configurations).

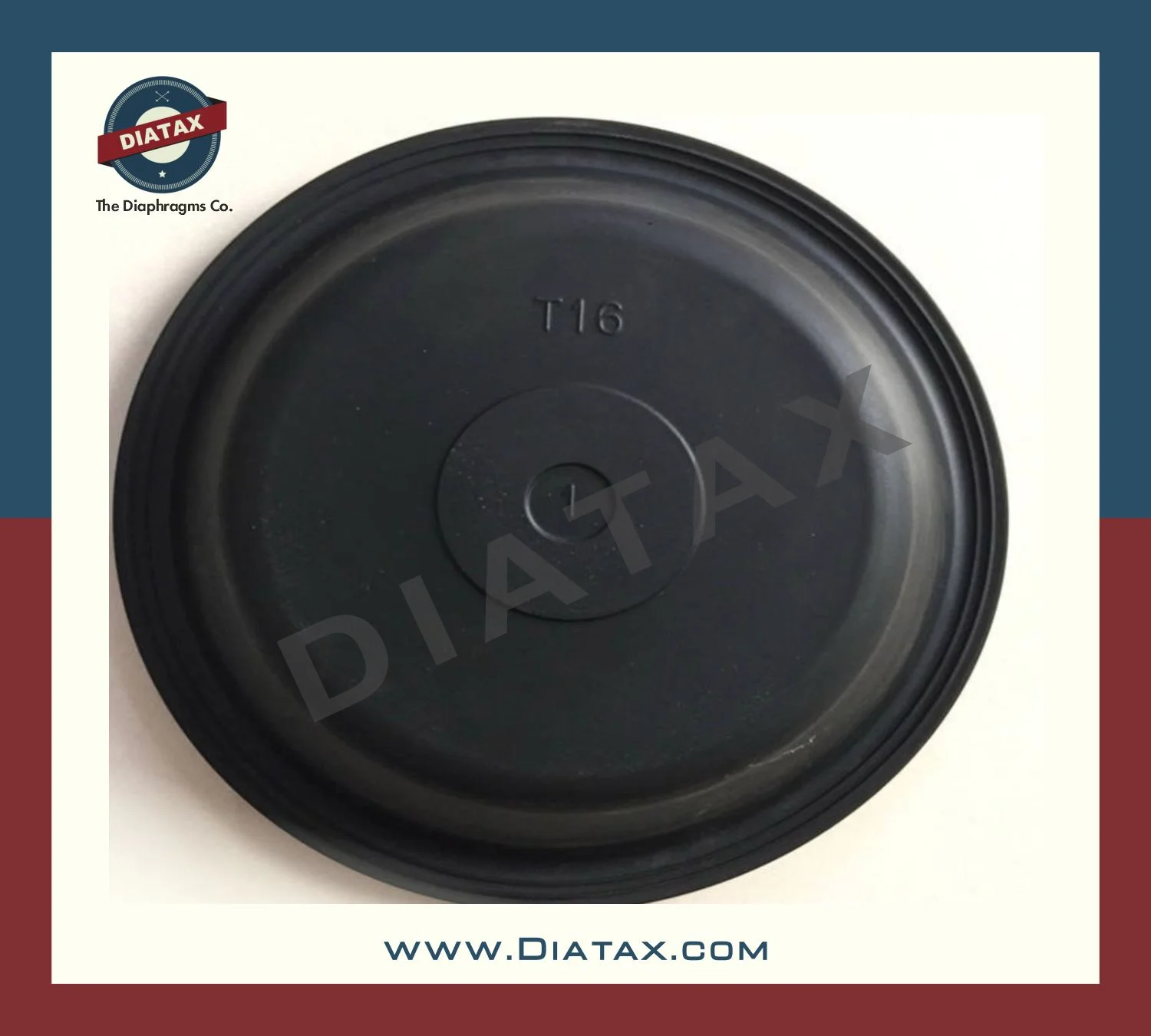

Type 16 Air Brake Chamber Diaphragm for Medium-Duty Trucks by Diatax

T16 Service Brake Chamber Diaphragm - ECE R13 Compliant Pneumatic Rubber Membrane

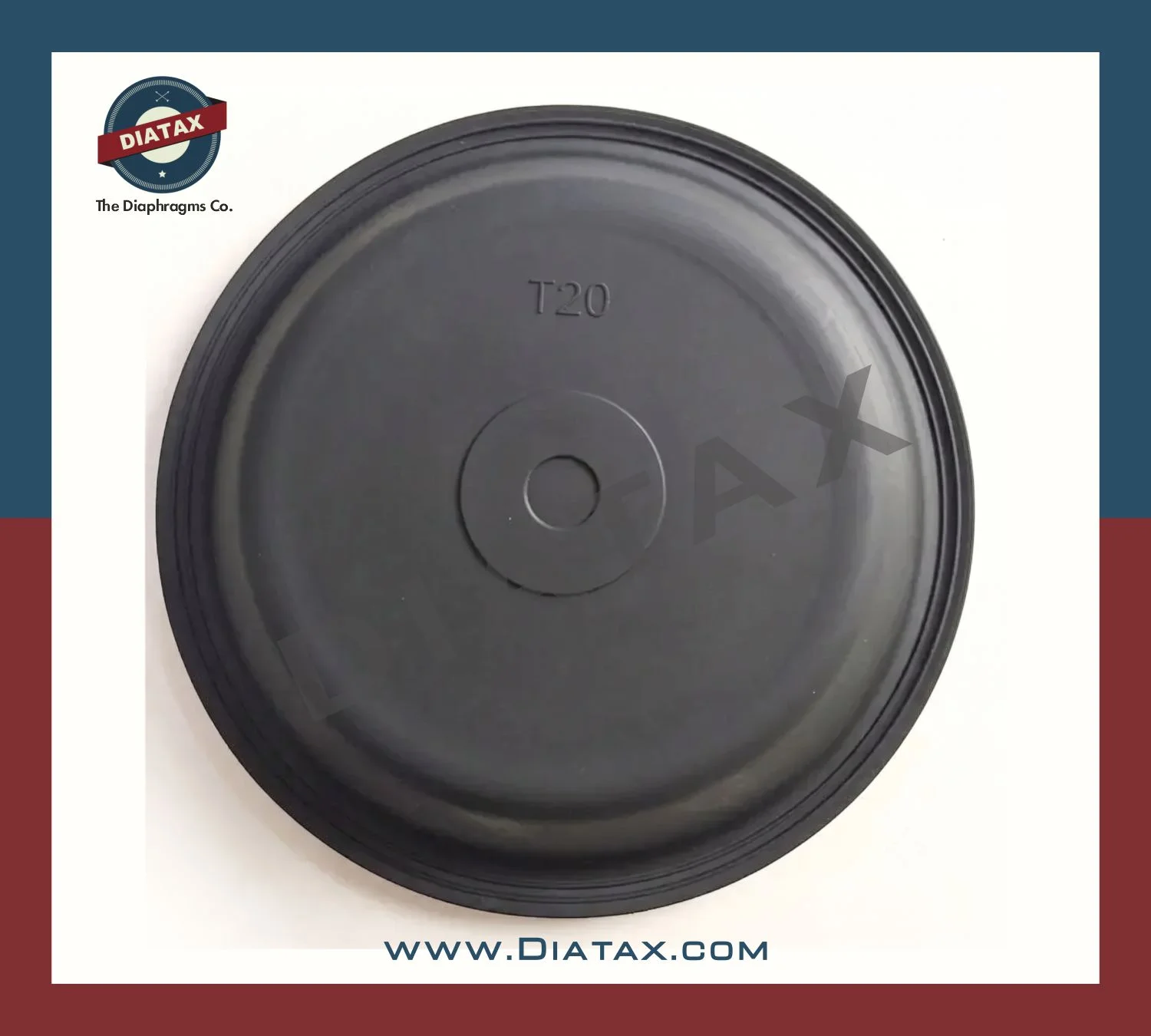

T20 Heavy-Duty Truck Air Brake Membrane - Volvo & Scania OEM Equivalent

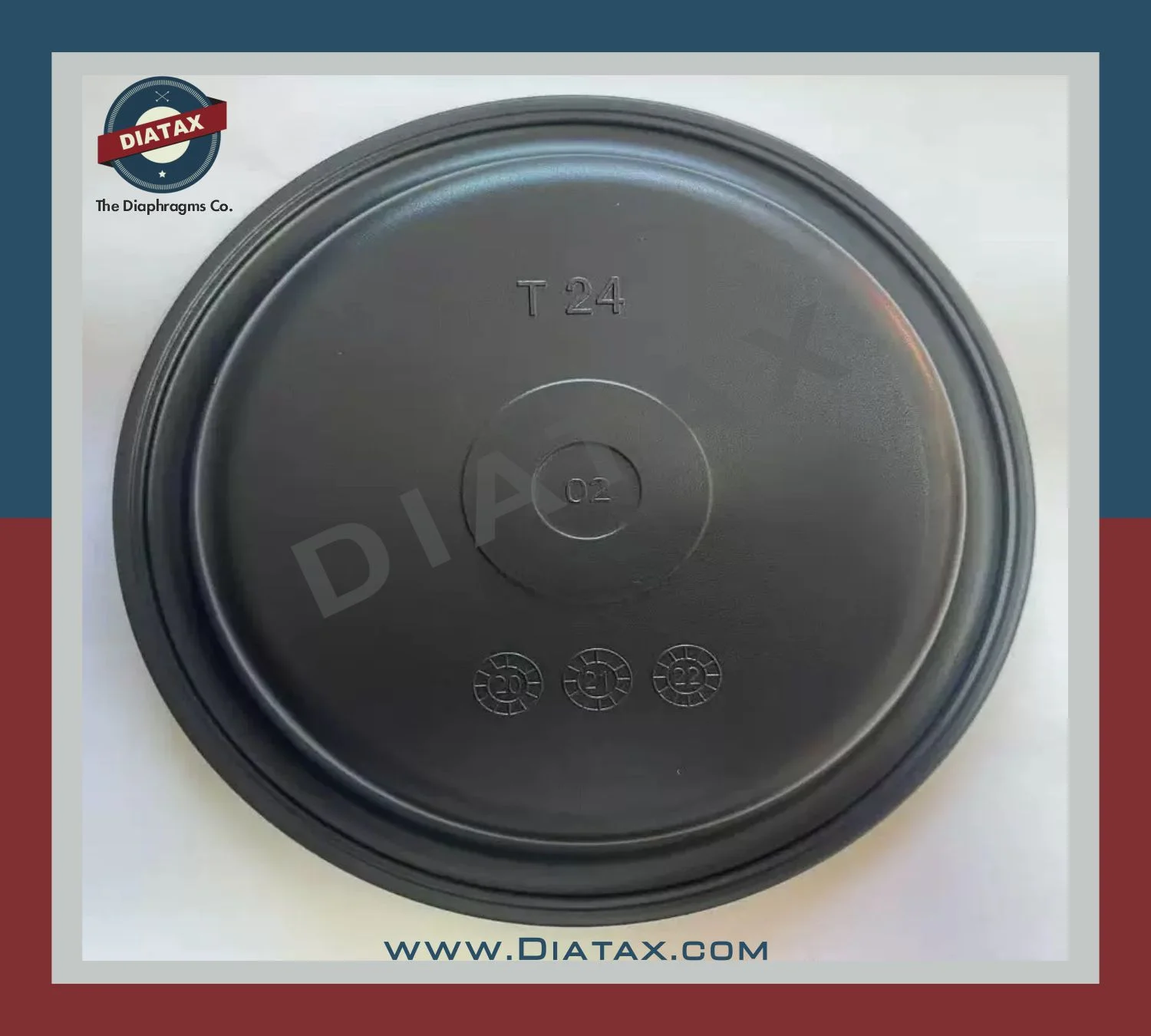

Type 24 Air Brake Chamber Diaphragm for Commercial Trucks and Lorries by Diatax

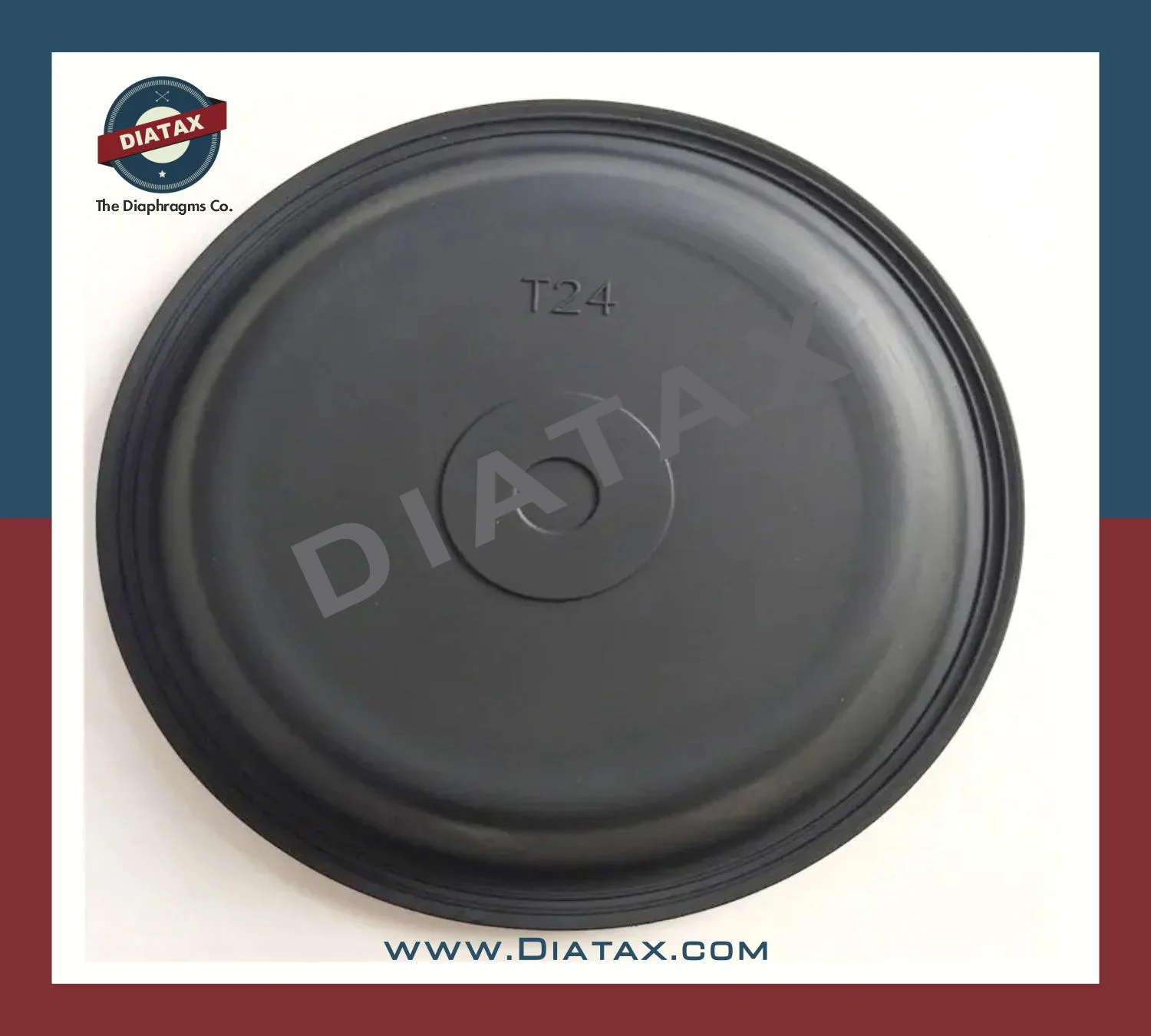

T24 Fabric-Reinforced Truck Brake Chamber Diaphragm - WABCO & Bendix Direct Replacement

Type 30 Heavy-Duty Truck and Lorry Air Brake Chamber Diaphragm - Premium Aftermarket Trailer Replacement Membrane

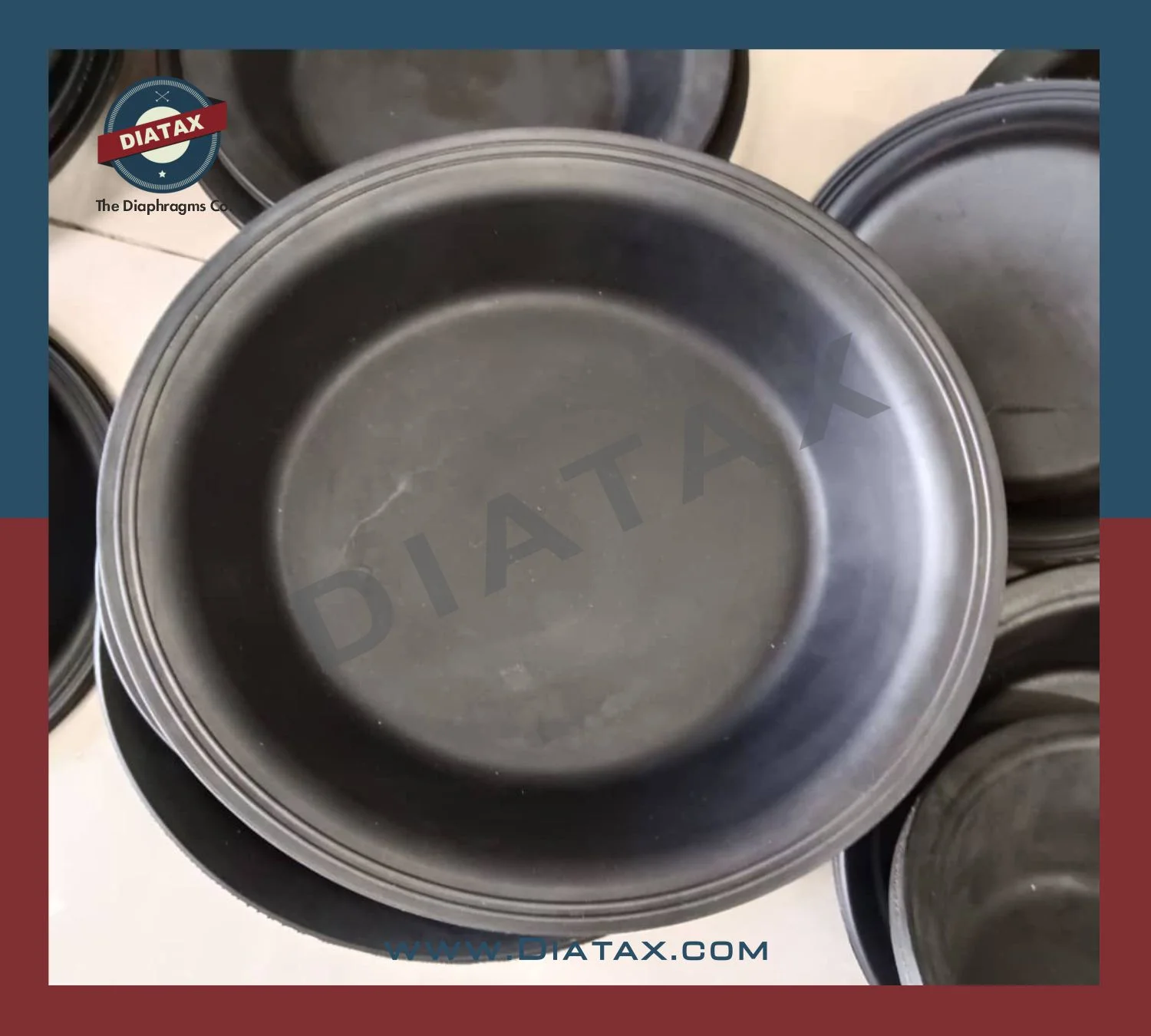

T30 Pneumatic Brake Chamber Diaphragm - 2-Million Cycle Tested Fleet Safety Component

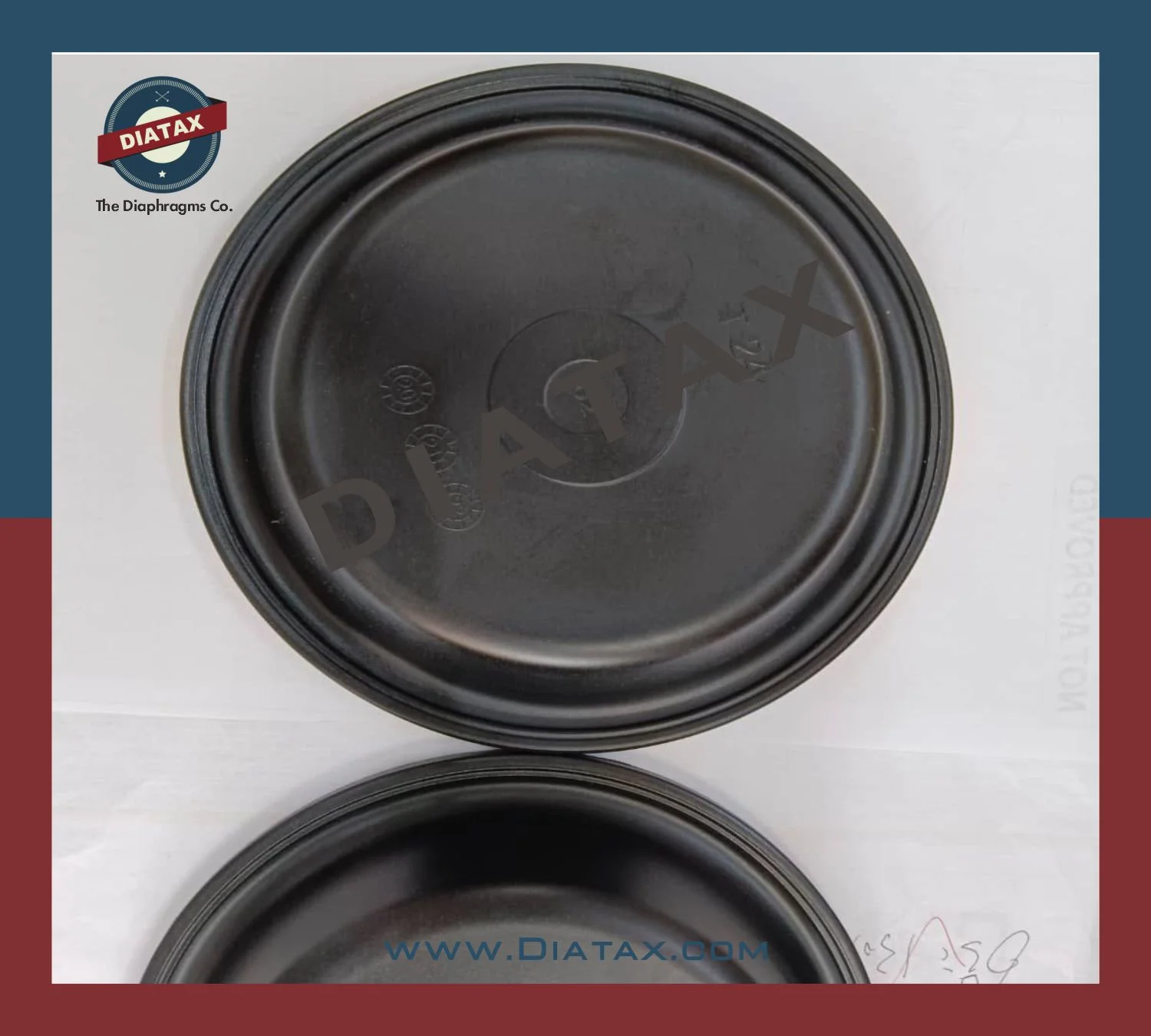

Type 30_30 Spring Brake Actuator Diaphragm for Heavy-Duty Trucks and Trailers

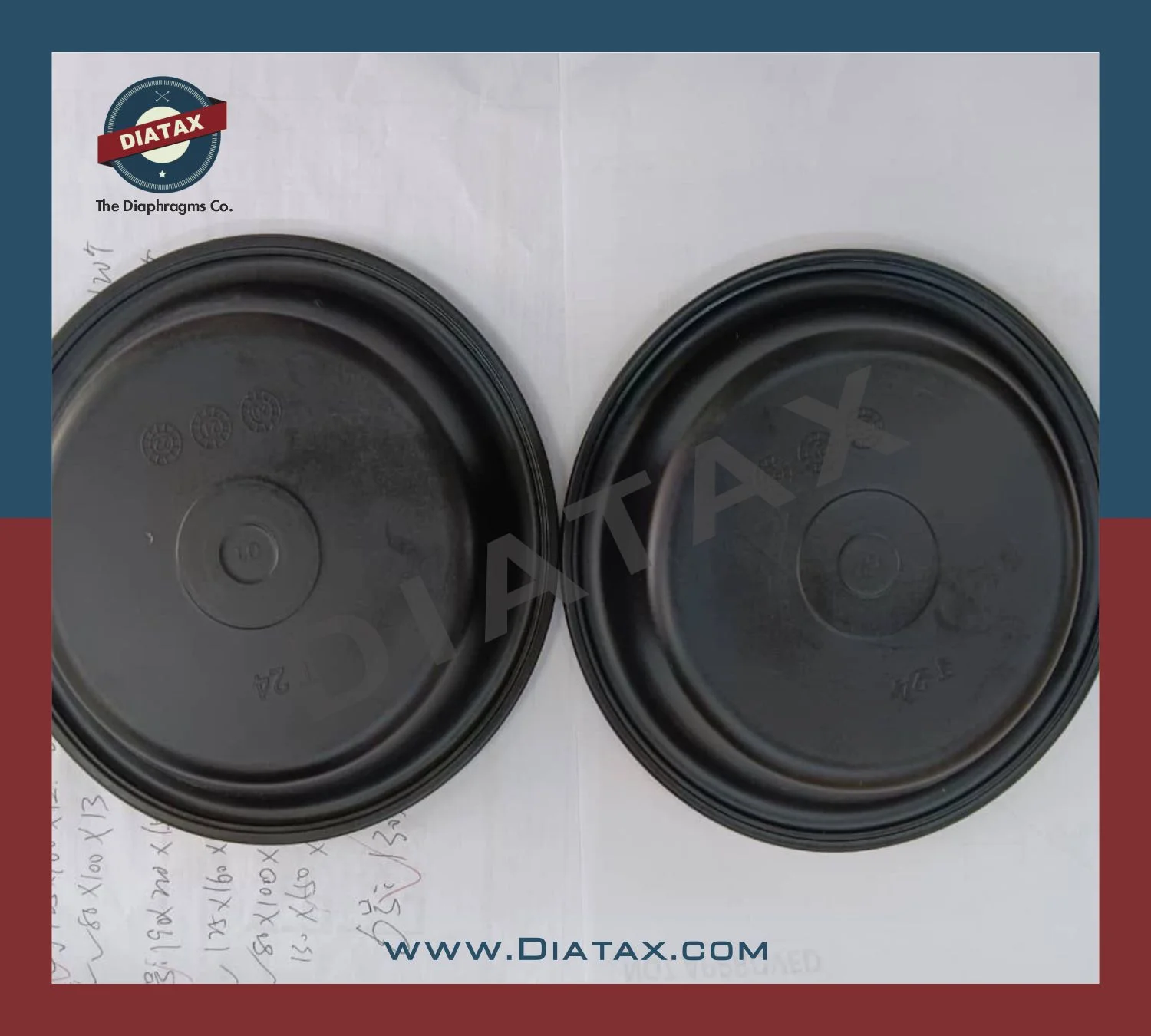

Cold-Weather Resistant Natural Rubber (NR) Truck Air Brake Chamber Diaphragm

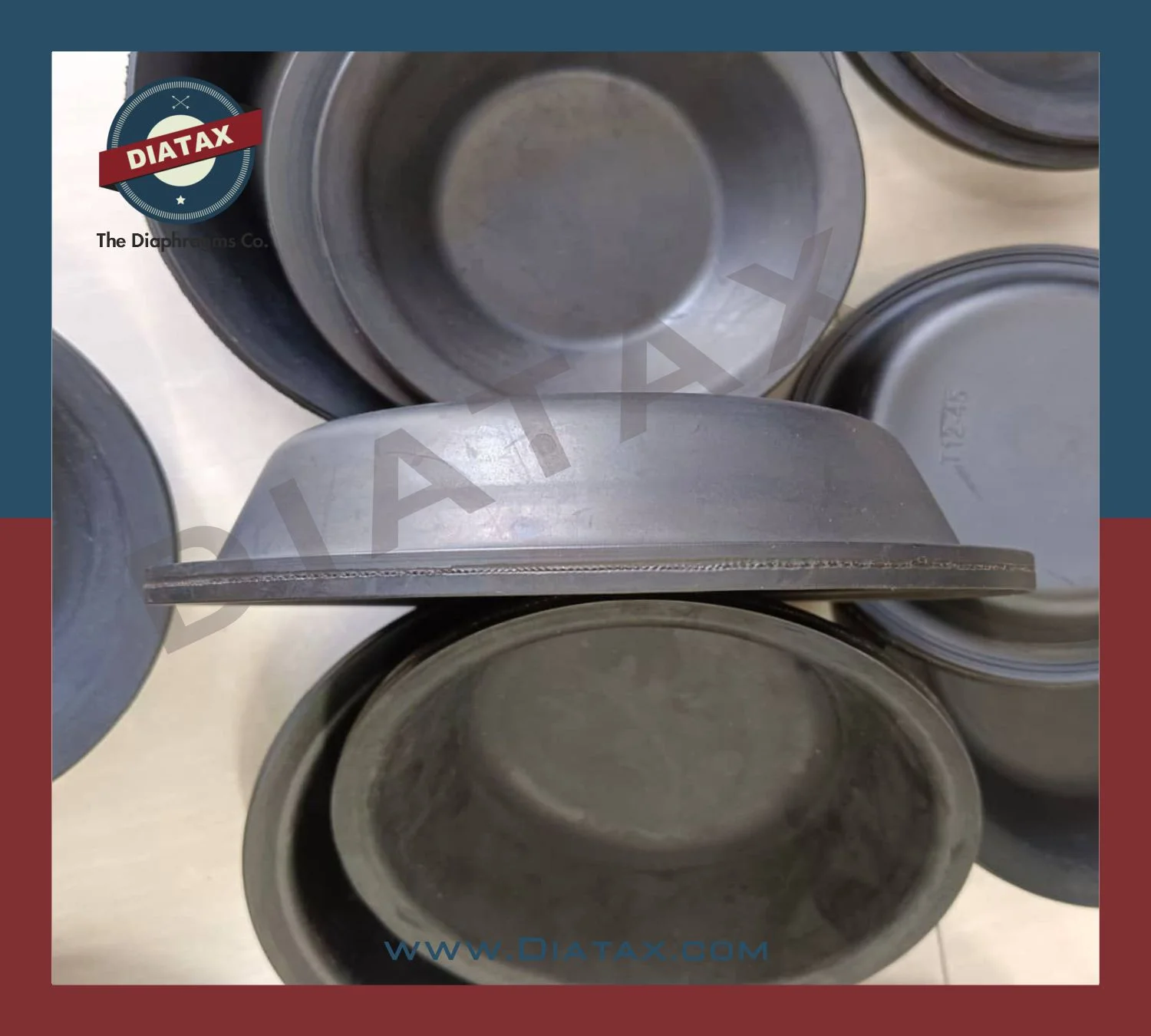

Fabric-Reinforced Rubber Air Brake Diaphragms for Commercial Lorries and HGVs

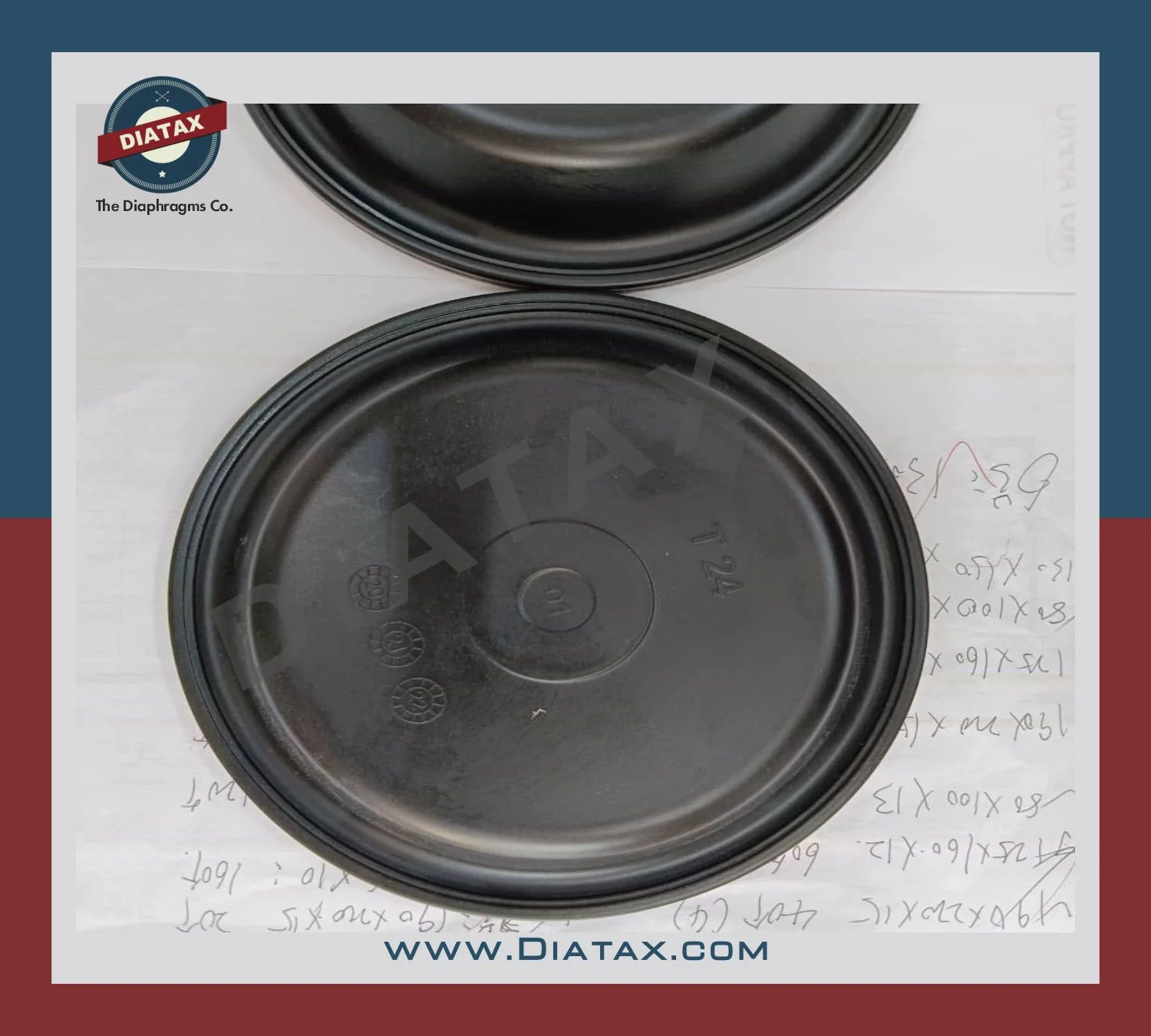

OEM-Grade Air Brake Membranes for WABCO, Bendix, and MAN Commercial Braking Systems

Global Supply Network

Global Exports: Supplying Heavy-Duty Air Brakes Worldwide

Diatax supplies premium pneumatic brake membranes to commercial fleet hubs and automotive aftermarket distributors across Europe, the Americas, and Asia.

Whether your procurement team is searching for heavy lorry brake spares in the UK, diafragmas para frenos de aire for Latin American transport fleets, heavy-duty Bremszylindermembran for German commercial trucking networks, or exact-fit membrane per cilindri freno for the European aftermarket, we provide guaranteed zero-defect sealing components for the world's most demanding road conditions.

Frequently Asked Questions

Frequently Asked Questions (FAQ)

What standards do Diatax air brake diaphragms meet?

Our air brake chamber diaphragms are engineered to strictly align with ECE R13 European commercial braking standards and SAE J2318 air brake actuator test standards, ensuring uncompromised global safety.

What sizes of truck and lorry brake diaphragms do you manufacture?

We manufacture a comprehensive range of standard industry sizes for both service and spring brake chambers, including Type 9, 12, 16, 20, 24, 30 (including T30/30), and 36.

Are your air brake diaphragms resistant to freezing temperatures?

Yes. We utilize specialized elastomeric compounding (such as high-grade Natural Rubber) tested to withstand severe sub-zero temperatures down to -40°C, preventing cold-cracking and delayed brake actuation.

How many flex cycles can your brake chamber diaphragms endure?

Through our state-of-the-art in-house testing facility, our fabric-reinforced diaphragms are rigorously flex-tested to endure more than 2 million cycles without failure.
